STUDIO
ISOPHASE 6
INTERGRATED
STUDIO MONITORING SYSTEM
The Opus ISOPhase 6 system is the ultimate Studio monitoring system.
A complete no compromise system designed for medium to large rooms.
For every genre of music!
The system comes with 1 x EB110 bass cabinets a side but if you need extended low end for larger spaces
you may expand the system up to 3 x EB110 bass cabinets per side using just the one HD 1250-1250 to drive them.
The standard ISOPhase6 system comprises of:
Speakers:
2 x ISO6 Mid/High Cabinets
2 x EB110 Bass cabinets
Amplification and Crossover:
1 x XS134 analogue system controller
1 x HD 500-500 Amplifier (Mid/High)
1 x HD 1250-1250 Amplifier (Bass)
Power:
1 x Opus Powerhub 6 Mains purification unit.
Isolation pods are included for Bass and Mid/Highs.
All speaker cables and interconnects are custom manufactured to our specification.
HD SERIES AMPLIFIERS
For over 40 years, the Opus High Definition Series has defined excellence in professional live and studio amplification. Designed with a true dual-mono Class A/B topology, these amplifiers have been perfected through decades of real-world use in some of the most renowned audio facilities around the world.
Built to bring out the very best in any premium loudspeaker system, the HD Series delivers exceptional performance, reliability, and musical transparency. Yet when paired with our ISOPhase 6 High-Resolution Studio Monitoring Systems, the synergy is nothing short of breathtaking—revealing every nuance, every detail, and every emotion in your mix.
OPUS Integrated Systems — Component Specifications:
Every HD amplifier is direct-coupled to the loudspeaker terminals, eliminating relays and inductors from the signal path for uncompromised purity and an outstanding damping factor across the full frequency spectrum.
At its heart, lateral MOSFETs housed in metal TO-3 packages deliver extraordinary transparency, precision, and transient response—faithfully reproducing every sonic texture with effortless accuracy.
A real-time intelligent protection system constantly monitors all operating parameters, ensuring rock-solid reliability and maintaining pristine output quality even under the most demanding conditions. The result: an amplifier that never clips, never compromises, and always performs at its peak.
HD 500 Dual Mono 500W~ 4Ω: 350W~ 8Ω
HD 1250 Dual Mono1250W - 2Ω : 900W~ 4Ω: 625W ~ 8Ω
Dimension - 2U x 510mm (depth)
Weight 30 - 35Kg

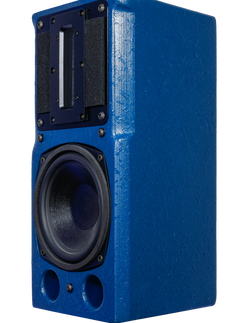

ISO6 SPEAKER (Mid/High)
Compact 2-Way Full-Range Loudspeaker
Powerful, precise, and beautifully balanced — the Opus ISO6 delivers outstanding clarity and control in a remarkably compact form.
Designed for high resoultion monitoring applications. The ISO6 brings natural, intelligible sound to every genre of music.
At its heart is a planar ribbon high-frequency driver, providing exceptional horizontal dispersion and crystal-clear articulation, even in acoustically challenging or reverberant spaces.
The ISO6 is available in a selection of custom paint finishes. For applications requiring extended low-end response, the ISO6 pairs effortlessly with Opus SB Series sub-bass cabinets and XS system controllers, delivering a cohesive, full-range performance.
Key Features:
-
125W full-range, 2-way passive loudspeaker
-
Planar ribbon HF driver for unrivalled intelligibility
-
Exceptional horizontal dispersion
-
Compact design
-
Available in custom paint finishes and colours
-
-
Width front: 195mm
Width back: 125mm
Height: 400mm
Depth: 205mm
9kg
EB110 Bass Cabinet
